Precision Control in Laser Cutting of Motor Cores: Achieving 0.01mm Tolerance

Introduction
In fields such as new energy motors, precision electronics, and automotive manufacturing, the machining accuracy of motor cores directly impacts equipment performance and efficiency. Traditional stamping processes, reliant on molds, face challenges including long lead times, high costs, and limited flexibility. In contrast, laser cutting technology has emerged as the preferred solution for rapid motor core prototyping due to its ultra-high precision (0.01mm tolerance), mold-free operation, and elimination of post-processing. This article analyzes how micron-level precision in motor cores is achieved through laser cutting, exploring technical principles, critical control points, and real-world applications, while evaluating the core competitiveness of related equipment.

I. Core Factors Influencing Laser Cutting Precision and Technical Insights

Achieving 0.01mm tolerance requires comprehensive optimization across hardware design, process parameters, and material properties:

1. Machine Tool Structure and Motion Control

Static and Dynamic Precision: Gear-rack systems and guideway installation accuracy determine static positioning (±0.01mm), while dynamic precision relies on servo motors and interpolation algorithms to minimize vibration and deviation. For instance, the CH Laser 6060L employs a closed-loop motion control system with a gantry dual-drive configuration. Servo controllers and motion control cards drive linear motors via analog signals, while high-resolution grating scales provide real-time feedback for positional corrections. Combined with a marble-based gantry platform, this ensures exceptional motion stability.

Multi-Axis Synchronization: The X-Y-Z three-axis system accommodates complex workpiece cutting. The CH Laser 6060L uses monolithic A6060 hard aluminum alloy frames processed with stress-relieving techniques to achieve low resonance, high rigidity, and dynamic stability, enabling both precision and high-speed cutting.

2. Laser Beam and Focusing System Design

Spot Diameter Optimization: High-quality focusing lenses achieve spot sizes as small as 0.01mm. The CH Laser 6060L integrates IPG fiber lasers with adaptive optical path adjustment, maintaining spot consistency across power levels. Dual water-cooled lenses and aberration-corrected optics ensure stable focus and consistent kerf geometry.

Focal Position Calibration: Through iterative testing and autofocus systems (e.g., CH Laser’s software-driven follow-up), the optimal focal position is determined. For ultra-thin silicon steel sheets (<0.3mm), distance-tracking technology minimizes burrs to <0.03mm.

3. Control System and Process Parameter Optimization

Intelligent Algorithms and Dynamic Compensation: High-precision CNC systems incorporate real-time adjustments for power, speed, and gas pressure. For example, segmented piercing strategies prevent thermal deformation during high-speed cutting (>100m/min). CH Laser 6060L’s built-in process library auto-matches material types with parameters, reducing manual setup by 70%.

Gas-Assisted Precision: Nitrogen or oxygen pressure is tailored to material thickness—high-pressure N₂ (>15Bar) for stainless steel to minimize oxidation, and higher pressures for reflective materials like aluminum. Silicon steel sheets (common in motor cores) achieve optimal balance at 8–10Bar.

II. Challenges and Systematic Solutions in Motor Core Precision Control

Motor stator/rotor cores, typically laminated from silicon steel sheets, demand tight tolerances (±0.02mm) and intricate hole/slot geometries:

1. Material-Specific Strategies

Thermal Management for Silicon Steel: Surface insulation coatings are prone to heat damage. Low-power pulsed modes (<500W) enable layer-by-layer cutting to prevent carbonization. CH Laser 6060L gradually ramps up power during initial cuts to reduce thermal stress.

2. Innovations in Complex Geometry and Micro-Hole Machining

Ultra-Fine Feature Cutting: Laser cutting directly translates CAD designs into toolpaths, supporting 0.1mm line widths—unachievable with traditional wire EDM. CH Laser’s intelligent nesting system reduces material waste by 15%.

Micro-Hole Breakthroughs: For ventilation holes <1mm diameter, high-frequency pulses (>1000Hz) and short-focal-length heads ensure ≤0.01mm wall perpendicularity. A case study showed CH Laser achieving 0.8mm rotor holes with 0.005mm roundness error, meeting 100,000 RPM motor requirements.

3. Lamination Consistency Management

Nanoscale Burr Control: Burrs ≤5μm per sheet prevent cumulative eccentricity. CH Laser’s ±0.01mm repeatability, combined with magnetic polishing, ensures laminated core thickness errors as low as 0.01mm—surpassing the industry’s 0.05mm standard.

Automated Inspection: Integrated CCD vision systems monitor cut quality and trigger secondary trimming for geometric accuracy.

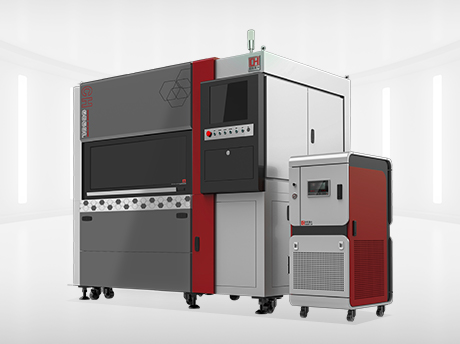

III. Technical Advantages and Commercial Value of CH Laser 6060L

Designed for new energy applications, the CH Laser 6060L excels in:

1. Mold-Free Production Revolution

Rapid Prototyping: Traditional mold development (10+ days) is replaced by CAD-to-part processing in 24–48 hours. A leading motor manufacturer reduced R&D cycles by 70% through five stator design iterations in three days.

Cost-Effective Small Batches: Prototyping costs drop by 80%. An industrial robotics firm slashed servo motor development costs from ¥320,000 to ¥50,000.

2. Precision-Efficiency Synergy

Premium Hardware: Imported ground ball screws (±0.01mm repeatability) and Inovance servos ensure ≤0.05mm diagonal error on 1m² cores.

Dynamic Focus Control: Adapts to 0–20mm thickness variations, limiting focus drift to <0.003mm on 0.5mm silicon steel.

3. Sustainability Leadership

Zero-Pollution Production: Oil-free operation and >99% dust filtration comply with ISO 14001.

Energy Efficiency: 40% photoelectric conversion (vs. CO₂ lasers) cuts annual energy costs by ¥500,000 at scale.

IV. Industry Applications and Future Trends

1. New Energy Vehicle Motors

Flat-Wire Motor Precision: CH Laser 6060L achieves ±0.015mm stator slot accuracy on 0.2mm silicon steel (Ra <1.6μm), boosting efficiency by 2% and range by 5% for EV makers.

Battery Integration: Simultaneous processing of battery tabs and cores reduces line cycle time by 20%.

2. High-Speed Servo Motors

Rotor Dynamic Balance: Symmetry errors <0.01mm outperform wire EDM in high-RPM applications.

Micro-Motor Manufacturing: Enables 0.05mm line widths for medical-grade motors (e.g., 0.8mm brushless motors).

3. Emerging Technologies

Hybrid Processing: Integrated "cutting-inspection" systems may boost productivity by 30%.

AI-Driven Optimization: Machine learning reduces parameter tuning time by 90% in experimental systems.

Ultrafast Lasers: Picosecond lasers enable "cold processing" for sensitive magnetic materials.

Conclusion
Laser cutting, with its 0.01mm precision and mold-free flexibility, redefines motor core manufacturing standards. The CH Laser 6060L, through high dynamic performance and intelligent design, sets a benchmark for rapid prototyping in the new energy sector. As laser power and AI algorithms advance, this technology will further propel the motor industry toward efficiency, precision, and sustainability.
