Motor Laminations Prototype

Leading Precision Laser Machines Manufacturer.

Rapidly Prototype EV Motor Core Laminations

CH Laser is a leading industrial laser cutting, welding, engraving, and marking machines manufacturer. With 26 years of laser expertise, we have been dedicated to providing full-system laser equipment, and global laser processing solutions.
We offer tailored prototyping service for electric motor stator and rotor cores. MOQ 1 set. Mold-free. High precision. Quick delivery.

Products & Services

Choose from a full range of laser equipment and services to cover all your project needs.
01
Laser Cutting Machine

Precision Laser Cutting Machines

  • Designed specifically for motor core rapid prototyping.
  • Higher cutting precision ±0.01mm and fast speed.
02
Laser Welding Machine

Laser Welding Workstation for Stator Core

  • Designed for multi-pass straight and diagonal seam laser welding of EV motor stator cores.
  • High compatibility, consistency, and efficiency.
03
Motor Core Laser Welding Production Line

EV Motor Core Auto-Production Line

  • One-stop solution for stator core laser welding, motor rotor core press riveting and inspection.
  • Enables faster production and higher stability.

Explore Our Entire Laser Product Lineup

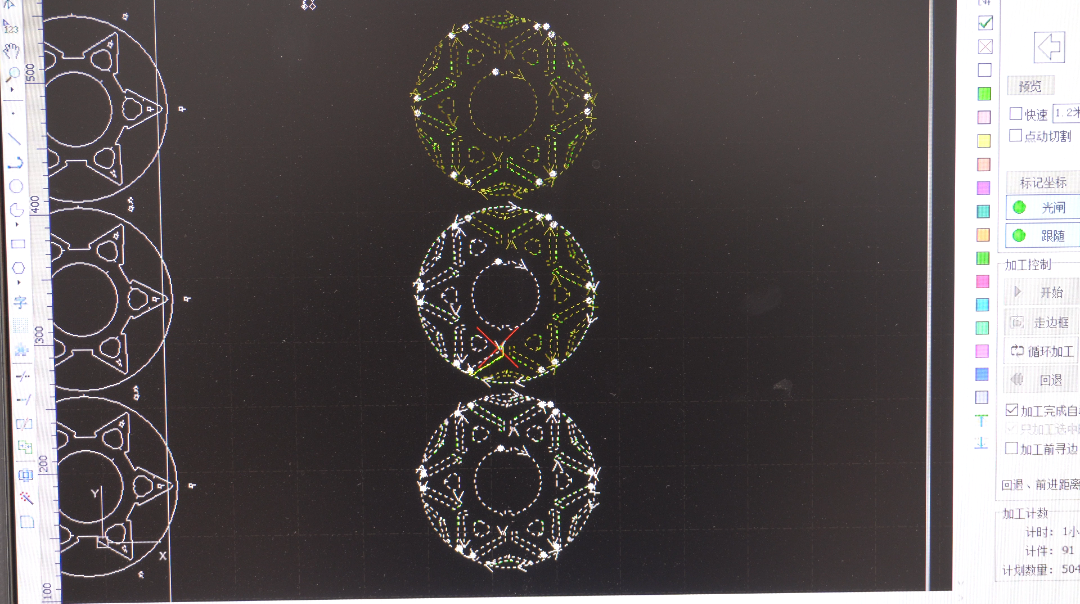

Rapid Prototyping Service for Motor Stator & Rotor Core Laminations

Mold-free, rapid quotes & 48-hour delivery
Higher precision of ±0.01mm
​​​​​​​
下拉箭头小
收起箭头

Getting your specific quote & solution has never been easier!

Tell us as specific as possible of your needs, provide the drawing, reference picture and share your idea.
We will work on the best solution according to your requirements, the specific quote will be provided within 24 hours.

Serving EV, Automotive, Motor Manufacturing,
Machinery Engineering, and More Industries




What Sets Us Apart

  • Laser Experience

    26 Years of Experience

    Our extensive knowledge and experience in the laser industry enable us to deliver exceptional products and services that meet the highest standards of excellence.
  • Factory

    15,000㎡ Factory

    Our factory is equipped with cutting-edge technology and facilities, allowing us to efficiently produce high-quality products while maintaining stringent quality control measures.
    ​​​​​​​
  • Certificates

    70+ Patents & Certificates

    We pride ourselves on our comprehensive certifications and robust system development, reflecting our commitment to innovation, quality assurance, and industry leadership.​​​​​​​
  • Clents

    400+ E-motor Industrial Clients

    CH Laser’s intelligent auto-production line for stator cores ensures precision, efficiency, and reliability, enhancing the performance and longevity of our clients' electric motors.

Honor & Certificates

We hold several prestigious certifications, including ISO9001, FDA Certificate, and Intellectual Property Management Standardization. With over 70 certificates and patents covering laser cutting, marking, welding machines, and core photonic components, our extensive portfolio highlights our industry leadership and reliability in laser technology.

CH Laser is Trusted by Businesses, and
Manufacturers, alike

Industrial News

Technical News
Precision Control in Laser Cutting of Motor Cores: Achieving 0.01mm Tolerance

Laser cutting technology revolutionizes motor core manufacturing with ±0.01mm precision, replacing the traditional stamping process to achieve mold-free, efficient and low-cost pilot production. The core breakthroughs include: dual-drive gantry system to ensure static accuracy, fiber laser to stabilize the spot and reduce burrs, intelligent pulse process to control thermal damage and achieve high roundness of the microvia, magnetic polishing and visual inspection technology to control the stacking error. The technology has been applied to new energy automobile flat wire motors (slot precision ±0.015mm), medical micro motors (0.05mm line width) and other fields, improving energy efficiency by 2% and reducing R&D costs by 80%. In the future, it will be developed in the direction of AI parameter optimization, picosecond cold processing and cutting inspection integration.

18/04/2025
Technical News
Technical News
How To Minimize HAZ in Silicon Steel Laser Cutting: Ultimate Guide for Motor Core Prototyping

In the previous blog, we addressed the issue of burrs during the processing of motor cores. However, another critical factor determining motor core performance—the Heat Affected Zone (HAZ)—has yet to be thoroughly explained. This blog will delve deeper into the prototyping of silicon steel motor cor

11/04/2025
Technical News
Technical News
How To Eliminate Burrs in Electric Motor Laminations? Laser Cutting & Welding Solutions

This blog will lead us to discover the causes of burrs and how laser cutting and welding technologies solve motor core lamination burr problems. Learn about precision processing, reduced electromagnetic losses, and CH Laser's 27-year expertise.

07/04/2025
Technical News
Technical News
Why Choose Laminated Cores in Motor Instead of Solid Cores?

Discover why laminated cores outperform solid cores in motors, boosting efficiency, reducing energy loss, and extending lifespan. Learn more in our in-depth guide!

25/09/2024
Technical News
Technical News
Motor Core Design: The Superiority of Silicon Steel And Selection Secrets (+2025 Guide)

This comprehensive guide examines silicon steel's pivotal role in motor core design, particularly for electric vehicles (EVs), driven by its optimal balance of electromagnetic performance and cost efficiency. Silicon steel (0.5%-6.5% Si) reduces iron losses to <4.5W/kg and achieves 1.7-2.0T magnetic flux density, enabling >95% motor efficiency. Key classifications include cold-rolled non-oriented silicon steel (CRNGO) for isotropic performance in high-speed EV motors (15,000-20,000rpm) and grain-oriented silicon steel (CRGO) for transformers. Thinner laminations (0.15-0.27mm) cut eddy current losses by 45% versus traditional 0.35mm sheets but require precision laser cutting (heat-affected zone <0.1mm), increasing production costs by 15%.

29/03/2025
Technical News
Technical News
What Materials Are Motor Stators?

Explore the materials used in motor stators, from silicon steel to composite materials. Learn how material choice impacts motor efficiency and performance in this comprehensive guide.

10/09/2024
Technical News
Technical News
Tesla’s Electric Motor Types, Specifications, Performance Statistics (2024)

Tesla continues to set the benchmark in electric vehicle innovation with its advanced electric motors. In 2024, Tesla's lineup features a range of motor types, each engineered for maximum efficiency, power, and performance. Whether it's the induction motors or permanent magnet motors, Tesla's commit

23/08/2024
Technical News
Technical News
Electric Motor Laminations Manufacturing Compared: Laser Cutting vs. Stamping vs. Etching vs. Wire Cutting

As electric motors are integral to various industries, from automotive to industrial machinery, ensuring that these components are manufactured to the highest standards is crucial.This article explores the different methods used in the manufacturing of electric motor laminations, including chemical

10/08/2024
Technical News

Request Free Quote

Looking for a precision laser cutting, welding machine manufacturer for new energy motor cores?
Contact us to get free quote and learn more expertise about laser solutions!
Request free quote
